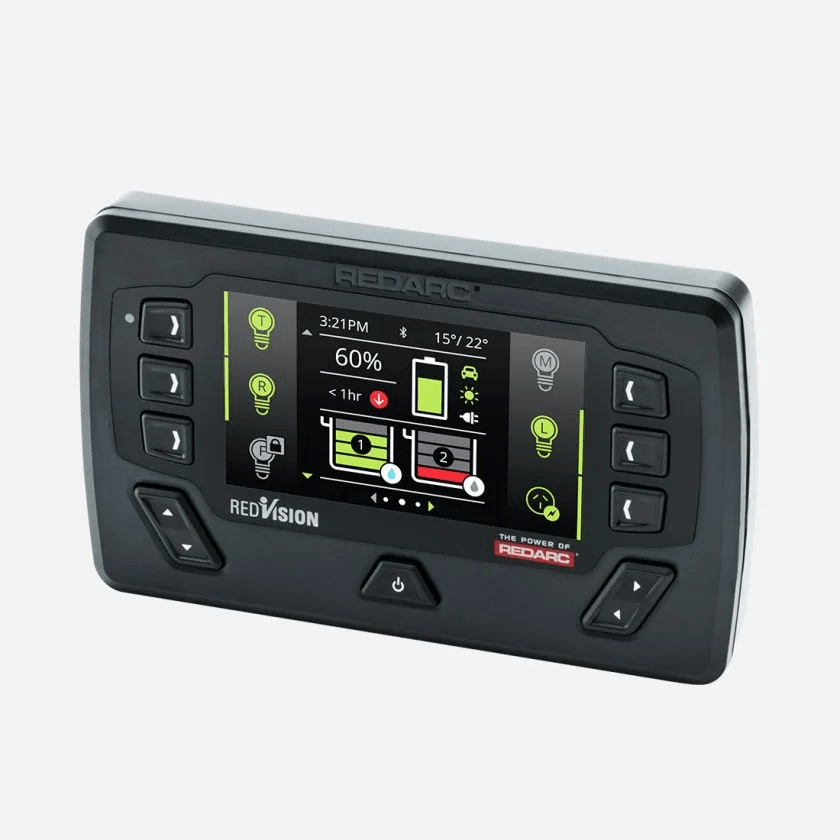

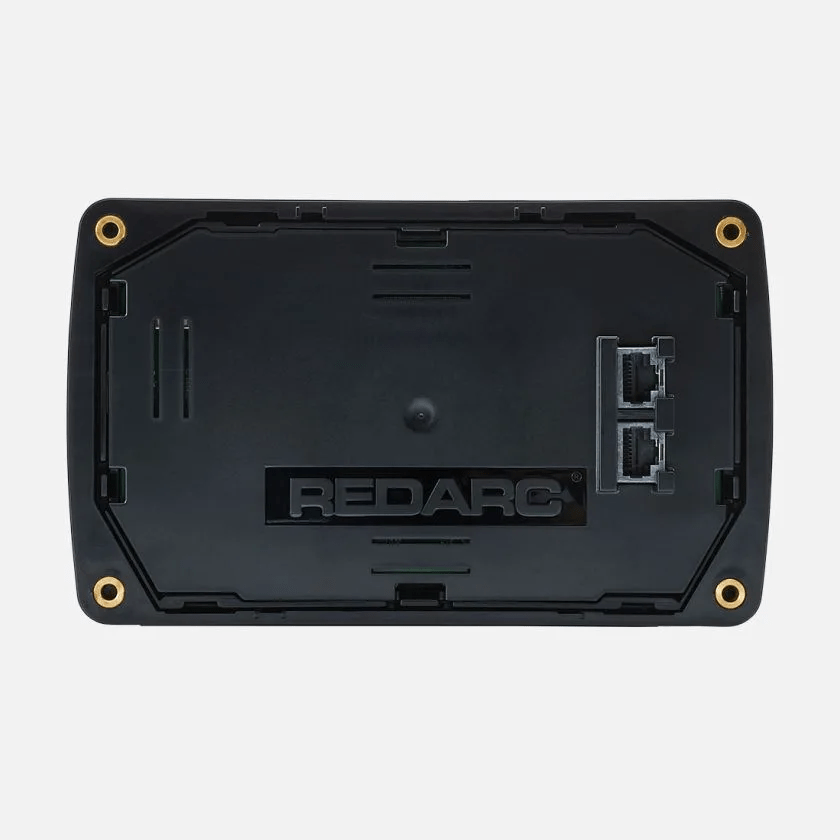

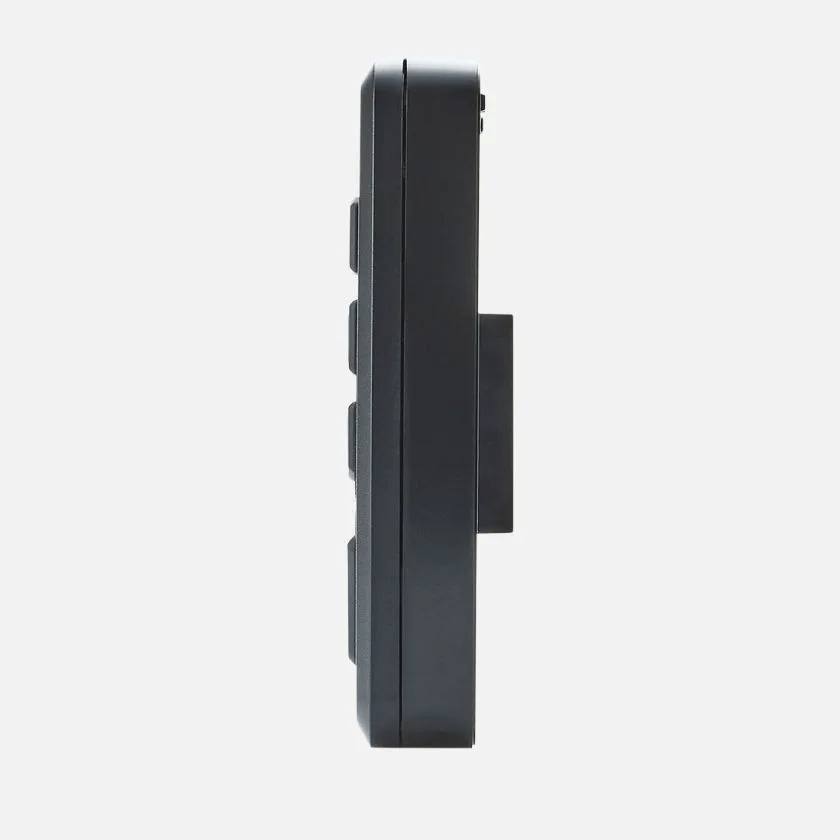

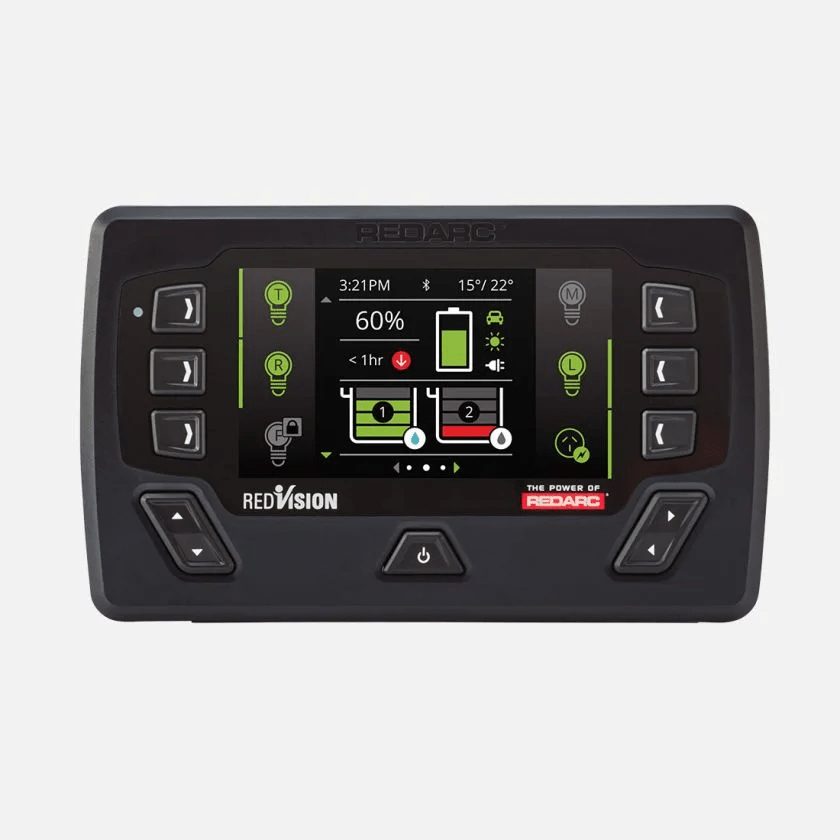

Redarc - Remote Control Unit with 4.3" Display, TVS Packed

REDARC DISP 4300-RC – Replacement / Secondary Display

Specifications

• Model: DISP 4300-RC
• GTIN/Barcode: 9338628005826
• Brand: REDARC
• Display Size: 110 mm
• Operating Temperature: -20°C to 75°C
• Weight: 300 g
• Dimensions: 108 mm H × 178 mm W × 26 mm D/L
• Warranty: 2 Years

Overview

The DISP4300-RC can be used as a replacement or secondary display for TVMS Rogue and TVMS Prime.

It features a modern, user-friendly interface with an easy-to-understand menu. The robust display is built and tested to withstand Australia’s tough and varied environmental conditions. It allows control of multiple on-board devices and visibility of water tank levels and battery power when paired with a REDARC Manager battery management system.

In-built Bluetooth provides a connection from your RedVision system to the RedVision app on a compatible mobile device.

This display unit can only be retrofitted for use on Manager30 units (part numbers BMS1230S2 or BMS1230S3), TVMS Rogue (TVMS1240), and TVMS Prime (TVMS1280).

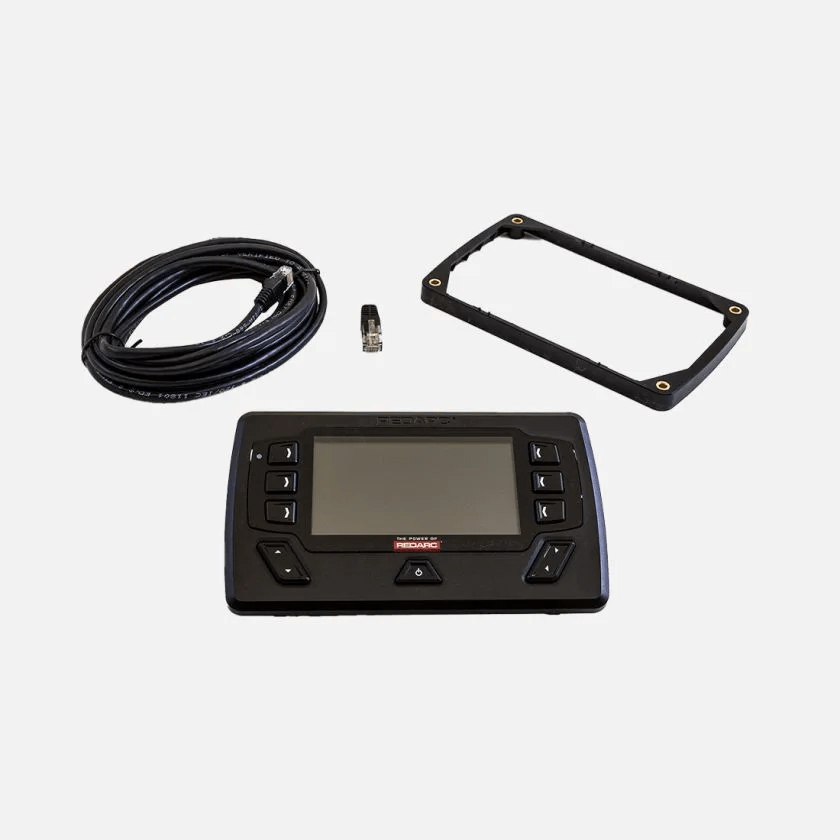

Included in the Box

• 4.3" Display (DISP 4300)
• Optional Mounting Spacer
• Display Fascia
• RJ45 R-Bus Cable — 5 m (3") Black
• RJ45 R-Bus Terminating Resistor
