Cruisemaster - 18D-Do45Plus-L - Coupler

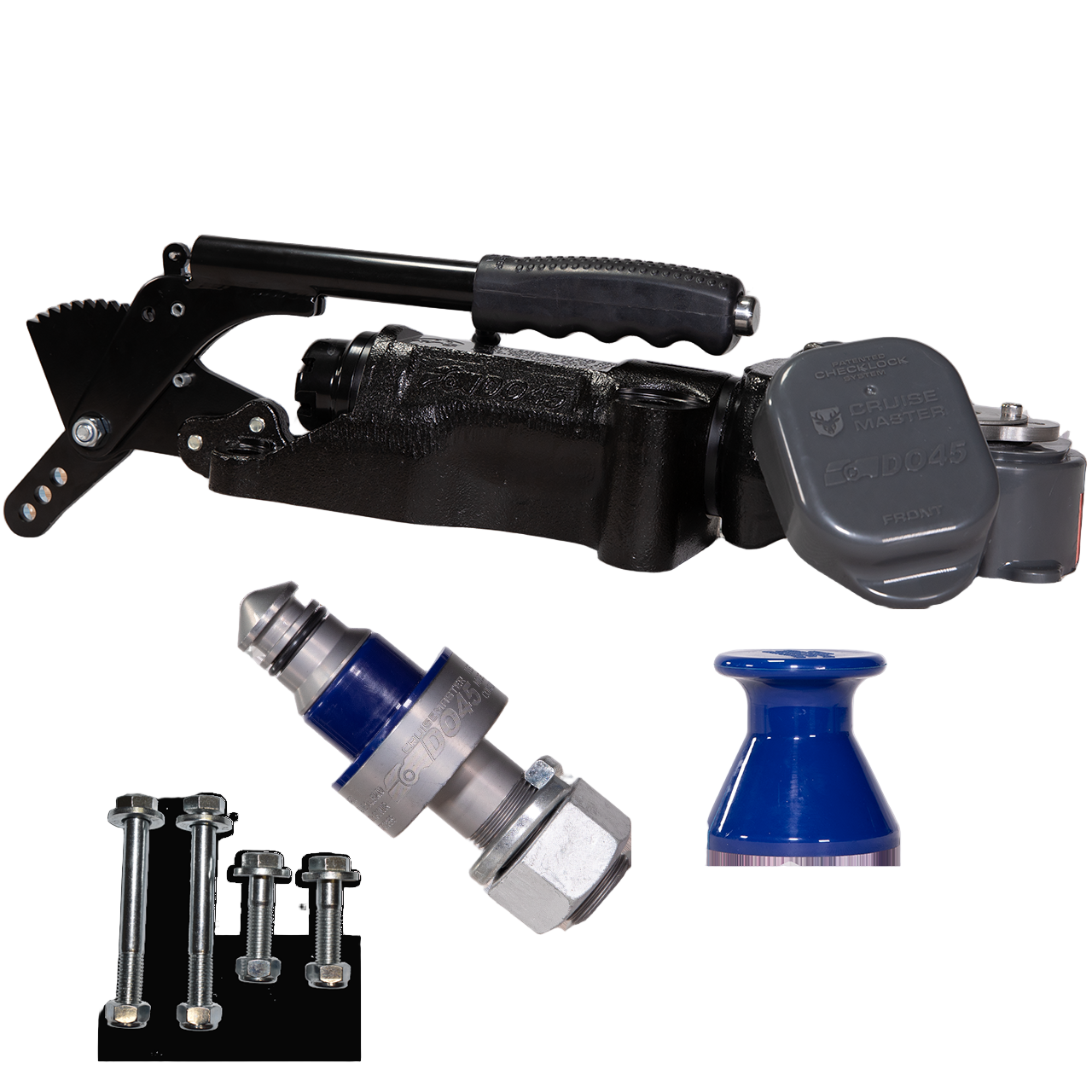

ITEM INCLUDES
Tame the Beast with the DO45 Plus!

PLUS SERIES EXCLUSIVE FEATURES
FEATURES
DO45 Plus (With Handbrake)
Tow Pin 1 1/4" Shaft
Tow Pin Cover
Universal C-Spanner
Fitment Bolts
User Guide
Patented “Checklock” Gen.2 Dust Cap & Bumper for an easy, secure seal
Improved Bumper now includes reflective reversing strip for easy alignment
Rear support webbing allows for mounting upside down on the underside of the drawbar
D-Value & V-Value ADR Compliant
2 Stage ADR compliant locking mechanism
Low profile Bumper & Cap for impressive clearance
High articulation for improved handling off-road and on unmaintained roads
Available with or without handbrake
Suitable for use with Weight Distribution System’s (where applicable)
Forged Yoke and Rear Nut for added strength
One piece lightweight Cast Housing
Improved towing safety
Combination of zn-ni and e-coat for superior corrosion protection
Greaseable Bushes for easy maintenance and noise free towing
No tow ball height restrictions
R.A.T Run Tested and Proven

ARTICULATION: 360 degrees axial, minimum 70 degrees other axes.
LOCKING: Fully ADR 62/02 compliant including automatic secondary lock
BOLT PATTERN: 4 bolts at 185mm x 76mm (Front) x 54mm (Rear)

RATING: 4.5 Tonne
ACTION: Drop-On
MAINTENANCE: Fully Greasable

For instructions on installation, maintenance and use refer the DO45 Plus User Guide.
*Please note while the DO45 Plus’s Zn-Ni with E-Coat provides superior corrosion protection it may fade with extended exposure to UV. This does not affect the operation of the DO45 Plus. To best maintain the finish of the product, we recommend covering the DO45 Plus coupling when not in use if stored outside and exposed to direct UV.
